NANOSECOND PULSE GENERATORS










Key features:

  • Semiconductor-based technology
  • Based on Drift Step Recovery Diodes (DSRD) - new type of semiconductor devices
  • Compact and reliable design
  • High energy efficiency
  • Output pulse voltage up to tens kV
  • Nanosecond pulse rise time
  • High repetition rate
  • Single-channel and multi-channel models

Application areas:

  • Plasma chemistry and reforming
  • Burners and plasma-assisted flame
  • Barrier discharge applications, ozone production, cold plasma source, water and gas cleaning, disinfection
  • Medical applications, cell electroporation
  • Plasma actuators
  • Plasma generation for surface cleaning and modification technologies
  • Pumping of laser tubes
  • Pockels and Kerr cells drivers
  • etc.
Model Description Pulse voltage Rise time,
ns		 FWHM,
ns		 Frequency Info

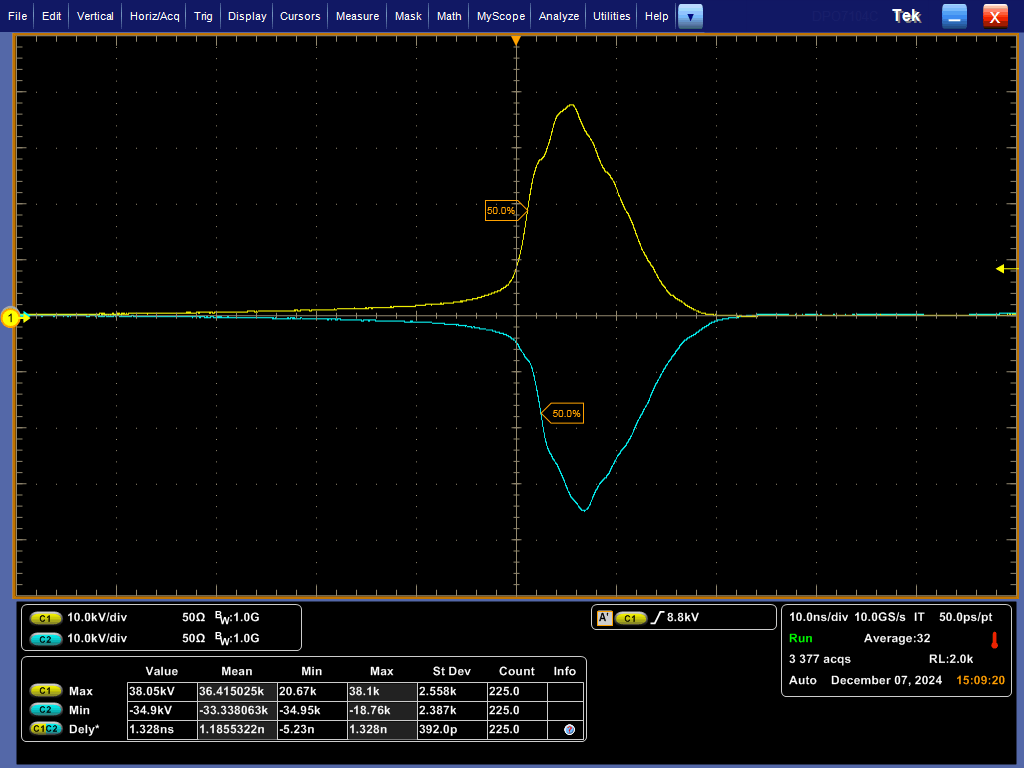

NPG30PN12
(positive+negative polarity)
two channels with precise and controllable channel-to-channel delay; up to 1 kHz in continuous and up to 50kHz in burst mode
+/-19kV...+/-30kV on 75Ω;
up to +/-60kV on discharge,
up to 120kV differential
 < 5 10 up to 50kHz
in burst mode

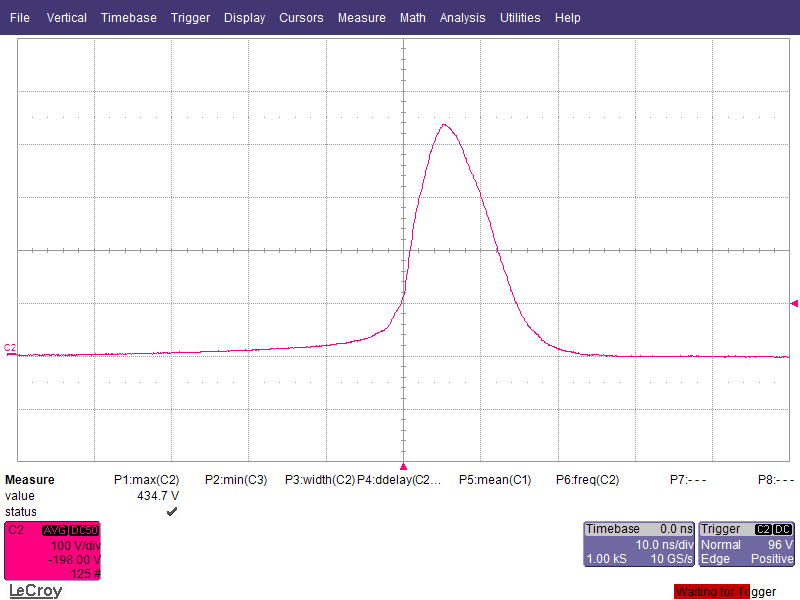

NPG30P12
(both channels positive polarity)
two channels with precise and controllable channel-to-channel delay; up to 1 kHz in continuous and up to 50kHz in burst mode
19kV...30kV on 75Ω;
up to 60kV on discharge
 < 5 10 up to 50kHz
in burst mode

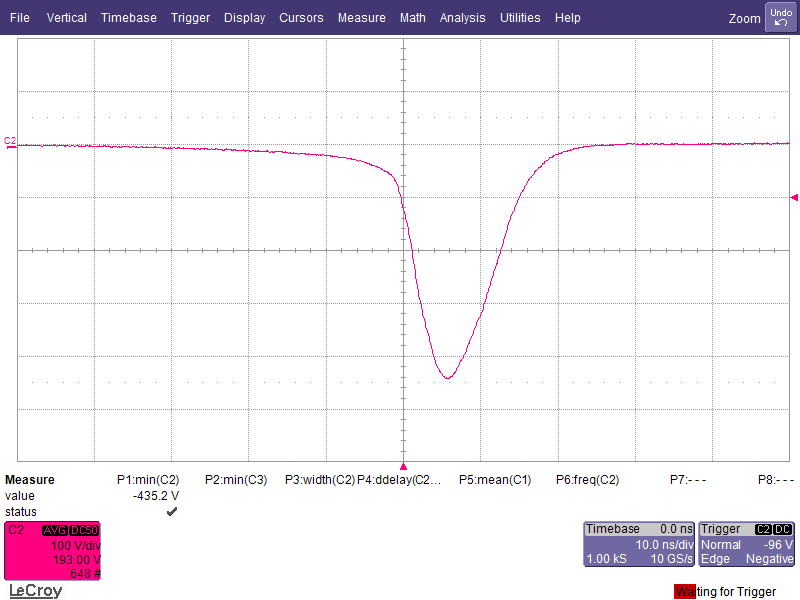

NPG30N12
(both channels negative polarity)
two channels with precise and controllable channel-to-channel delay; up to 1 kHz in continuous and up to 50kHz in burst mode
-19kV...-30kV on 75Ω;
up to -60kV on discharge
 < 5 10 up to 50kHz
in burst mode
NPG30P11
(positive polarity)
four times higher pulse energy; up to 1 kHz in continuous and up to 50kHz in burst mode; digital control
15kV...30kV on 75Ω;
up to 60kV on discharge
 < 5 11 up to 50kHz
in burst mode
NPG30N11
(negative polarity)
four times higher pulse energy; up to 1 kHz in continuous and up to 50kHz in burst mode; digital control
-15kV...-30kV on 75Ω;
up to -60kV on discharge
 < 5 11 up to 50kHz
in burst mode

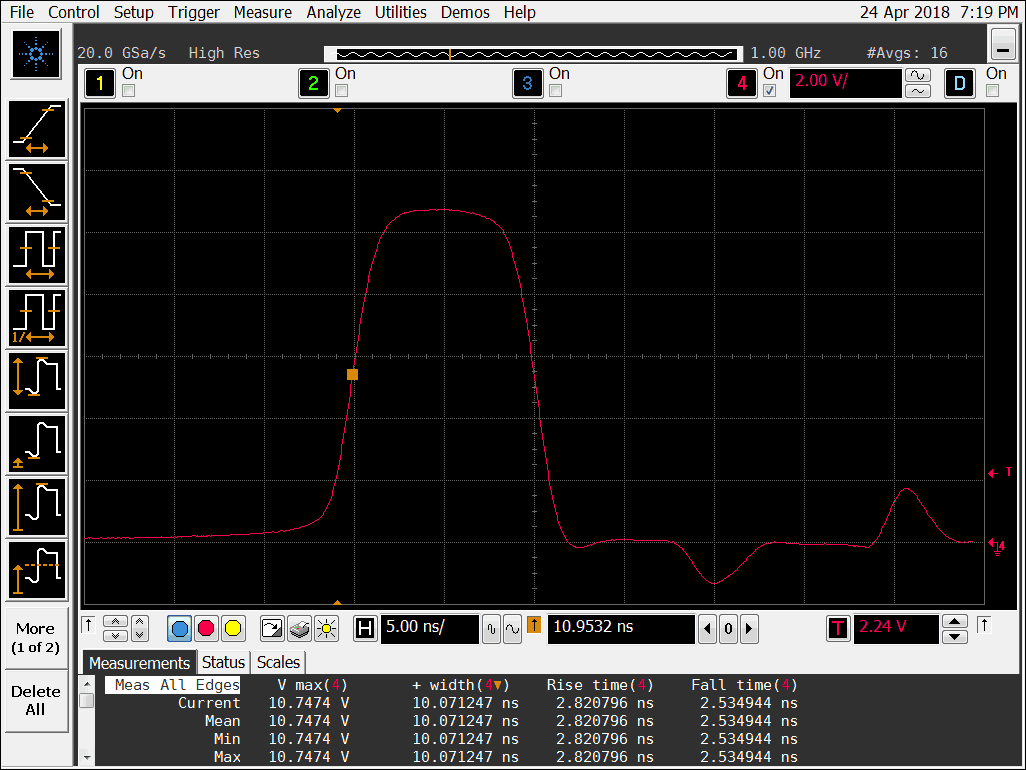

rectangular pulse waveform, matched 50 Ohm and high impedance load operation
1.5kV...5kV on 50Ω;
3kV...10kV on high impedance load
 < 4 10 up to 1kHz
NPG18P14
(positive polarity)
four-channel; up to 100kHz in burst mode; digital control of the amplitude, frequency, and number of pulses in burst
13kV...18kV on 75Ω;
up to 36kV on discharge
 < 4 9 up to 100kHz
in burst mode

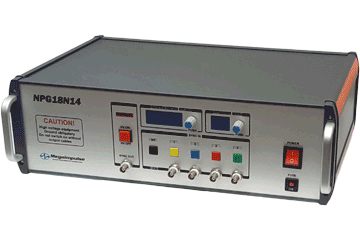

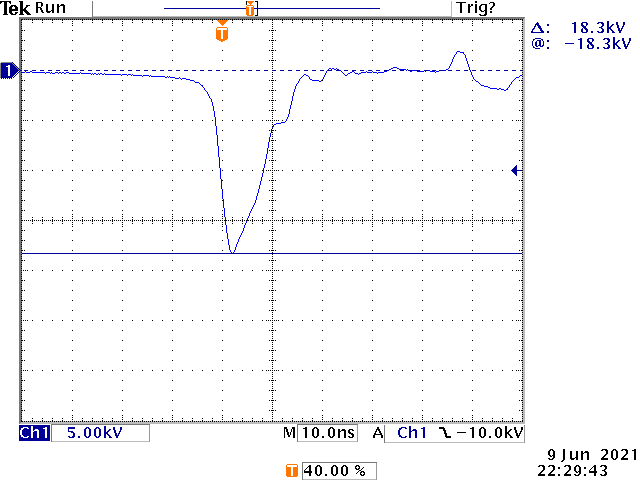

NPG18N14
(negative polarity)
four-channel; up to 100kHz in burst mode; digital control of the amplitude, frequency, and number of pulses in burst
-13kV...-18kV on 75Ω;
up to -36kV on discharge
 < 4 9 up to 100kHz
in burst mode
NPG-10/100k
(positive polarity)
up to 30kHz in continuous and up to 100kHz in burst mode; digital control of the amplitude, frequency, and number of pulses in burst

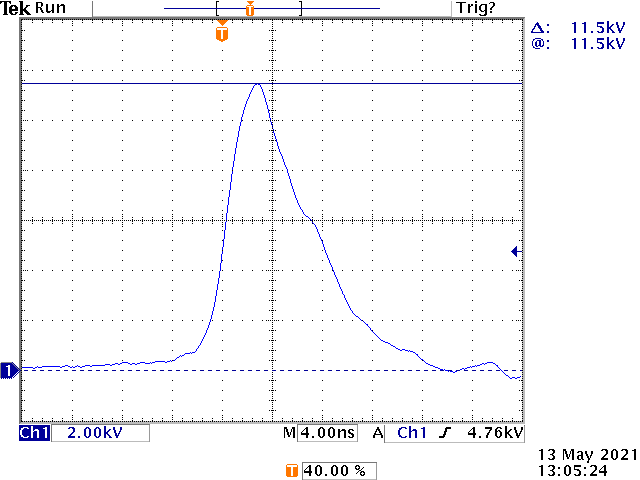

7kV...11kV on 75Ω;
up to 22kV on discharge
 < 4 7 up to 100kHz
in burst mode
NPG-10/100kN
(negative polarity)
up to 30kHz in continuous and up to 100kHz in burst mode; digital control of the amplitude, frequency, and number of pulses in burst
-7kV...-11kV on 75Ω;
up to -22kV on discharge
 < 4 7 up to 100kHz
in burst mode
NPG-18/100k
(positive polarity)
nanosecond pulser with up to 100kHz repetition rate in burst mode; digital control of the amplitude, frequency, and number of pulses in burst

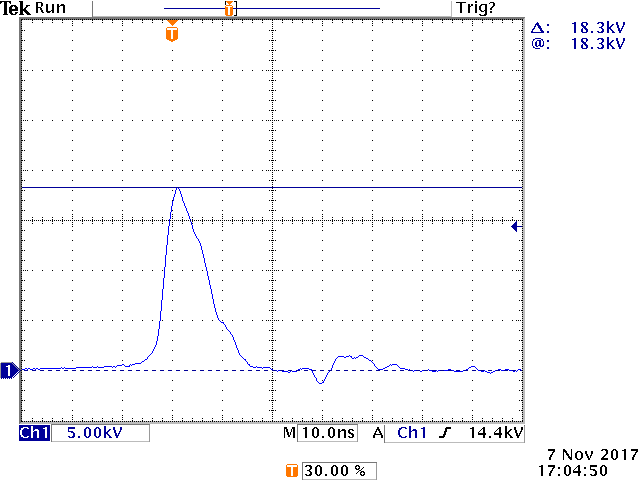

6kV...18kV on 75Ω;
up to 36kV on discharge
 < 4 9 up to 100kHz
in burst mode

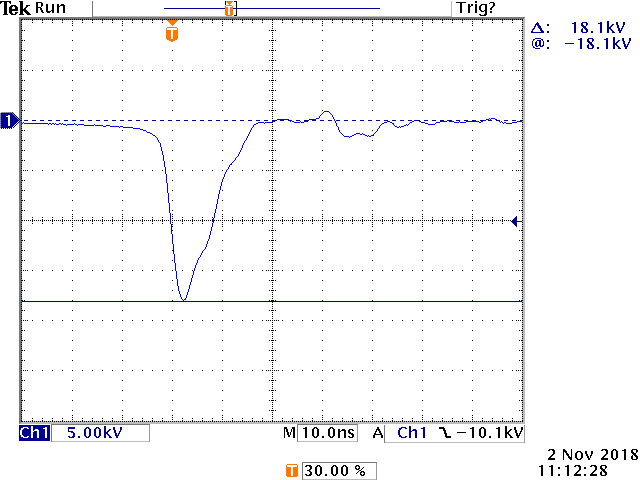

NPG-18/100kN
(negative polarity)
nanosecond pulser with up to 100kHz repetition rate in burst mode; digital control of the amplitude, frequency, and number of pulses in burst
-6kV...-18kV on 75Ω;
up to -36kV on discharge
 < 4 9 up to 100kHz
in burst mode

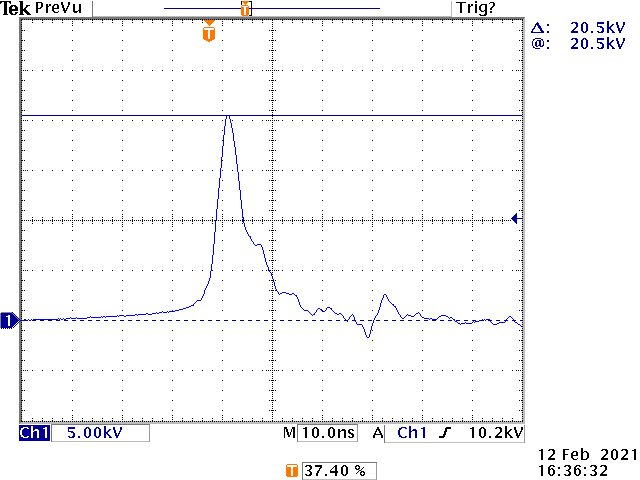

NPG-20/3500
(positive polarity)
designed for 50Ohm impedance matched load operation; extended min/max amplitudes range
10kV...20kV on 50Ω
 < 4 10 up to 3.5kHz
NPG-20/3500N
(negative polarity)
designed for 50Ohm impedance matched load operation; extended min/max amplitudes range
-10kV...-20kV on 50Ω
 < 4 10 up to 3.5kHz User
NPG-18/3500
(positive polarity)
nanosecond pulser with improved triggering and operation; BNC type SYNC IN and SYNC OUT connectors
13kV...18kV on 75Ω;
up to 36kV on discharge
 < 4 6 up to 3.5kHz User
NPG-18/3500N
(negative polarity)
nanosecond pulser with improved triggering and operation; BNC type SYNC IN and SYNC OUT connectors

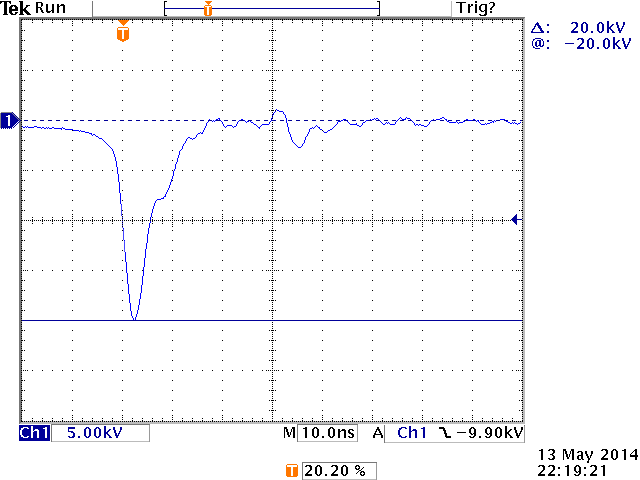

-13kV...-18kV on 75Ω;
up to -36kV on discharge
 < 4 6 up to 3.5kHz User
NPG-30/500

OBSOLETE!
nanosecond pulser with high output pulse energy and pulse amplitude
7kV...30kV on 75Ω;
up to 60kV on discharge
 < 4 12 up to 500Hz User
NPG-10/5000
(positive polarity)

OBSOLETE!
nanosecond pulser specially designed for 50 Ohm impedance discharge systems
7kV...11kV on 50Ω;
up to 22kV on a barrier discharge reactor
 < 4 < 10 up to 6kHz
NPG-10/5000N
(negative polarity)

OBSOLETE!
nanosecond pulser specially designed for 50 Ohm impedance discharge systems
-7kV...-11kV on 50Ω;
up to -22kV on a barrier discharge reactor
 < 4 < 10 up to 6kHz
NPG-15/2000
(positive polarity)

OBSOLETE!
nanosecond pulser designed for barrier and other types of discharge systems; optical SYNC IN and SYNC OUT connectors
13kV...18kV on 75Ω;
up to 36kV on a barrier discharge reactor
 < 4 6 up to 3.2kHz User
NPG-15/2000N
(negative polarity)

OBSOLETE!
nanosecond pulser designed for barrier and other types of discharge systems; optical SYNC IN and SYNC OUT connectors
-13kV...-18kV on 75Ω;
up to -36kV on a barrier discharge reactor
 < 4 6 up to 3.2kHz User

ACCESSORIES:

Model Description Info
resistive coupler for the precise measurement of the NPG generators output HV nanosecond pulse waveform, pulse reflected from the load, calculate energy of the incident and reflected pulses as well as total energy balance of the discharge
 Data User
CS-10/500
current measurement shunt with nanosecond resolution for NPG series generators
 User

3 meters length high voltage output coaxial cables for NPG pulse generators, other lengths are available on request

NPG series nanosecond pulse generators are designed for laboratory or industrial applications. They are suitable for 24/7 maintenance-free operation. NPG generators have a user-friendly and simple interface that eliminates possible operation errors which may lead to damage to the generator. They can work with any type of load including short or open load. Nanosecond pulse generators have over-temperature and over-frequency protection. The last is useful for external triggering operation mode. In case of overheating the generator will return to normal operation automatically after a few minutes of idle operation when the circuit components temperature reduces down to the safe level. Breakdown in the load does not lead to damage to the generator because of the reliable protection system. Please follow strictly the User Manual recommendations and contact Megaimpulse Ltd. in case of any question.
